- This trailer can be outfitted with any of our smokers, please contact us to clarify cost on this trailer if you would like a different smoker installed.
- Please See: 1/2 ADV Stationary Smoker on this site for more pictures of the smoker on this trailer.
Total Cooking Surface:
34 sq. ft.
Pit (Reverse Flow):

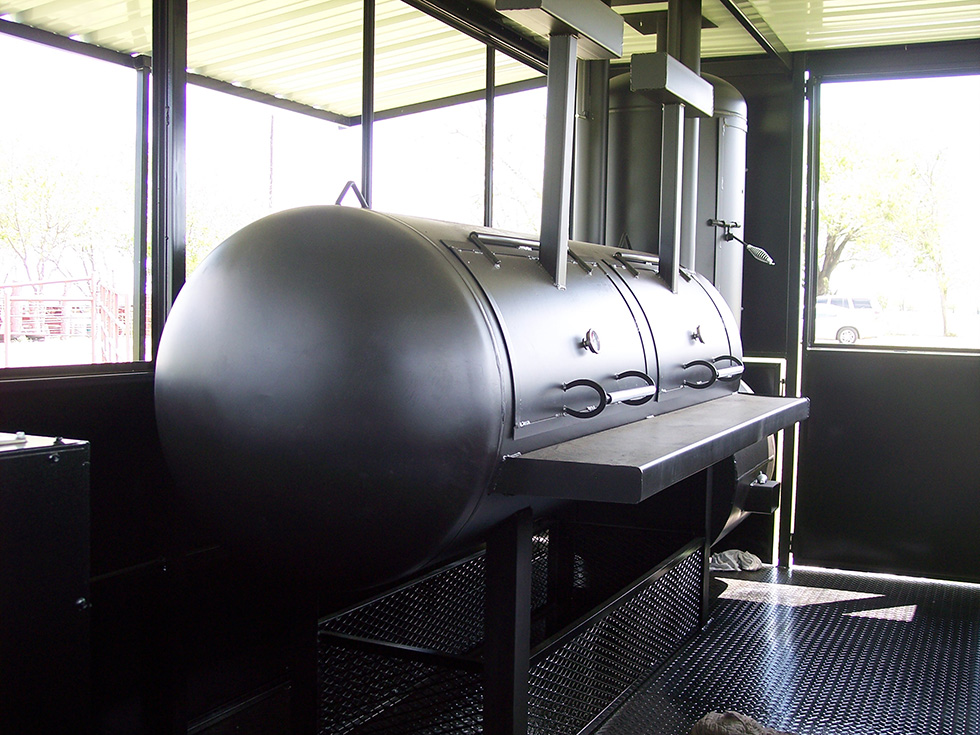

Total pit measures 9' long and 30” wide. It consists of a 7' long main chamber that’s 30" in diameter. Two cooking doors with counterweights make opening a breeze. Two slide out cooking racks per door measuring 32” by 30” and 32” by 25” giving you right at 25 square feet of cooking surface. The pit is designed with industry standard Reverse Flow. The baffles are made in separate pieces for adjustability. No more hot spots…Contact me if you’d like a description of its characteristics. I have also taken this concept a step farther and made the reverse flow baffles removable. This makes cleaning a lot easier. In doing this you can also turn this smoker into a professional Charcoal Grill. Simply pull the baffles out, insert the 2' by 2' charcoal boxes and start cooking steaks. The charcoal tray receives air from the firebox vents the same was as it would when cooking with wood. Only difference is the charcoal try is positioned in place of the Baffle. The charcoal box is also adjustable to get you the proper heat you desire when grilling steaks etc. See photos for pictures of the included charcoal trays. There are 2 stacks with rain caps set to pull the heat out at “cooking grate level.” They are 4.5” in diameter and measure 4' long. Setting them at the same level as the cooking racks keeps the heat in the cooking chamber longer making the pit burn less wood and making the stacks 4' long allows for a more sustained draw of smoke from the cooking chamber.
Stainless Steel cooking racks quoted on request!!!
The pit has a 30” long by 30” wide firebox with (3) 6” by 4” vents for ample airflow and cooking heat.
If you decide to use the entire pit surfaces to cook using the firebox you have a grand total of 34 sq ft of cooking surface.
Sitting on top of the firebox is a 24” diameter by 3.5' tall smoker. It is connected to the main chamber by a 6” by 4” vent that can be opened for smoking or shut off completely turning the smoker into a warmer. Inside the smoker is 4 removable cooking racks that have a combined cooking surface of about 9 square feet. The smoker has its own temp gauge, 3.5” stack and spring steel handles.

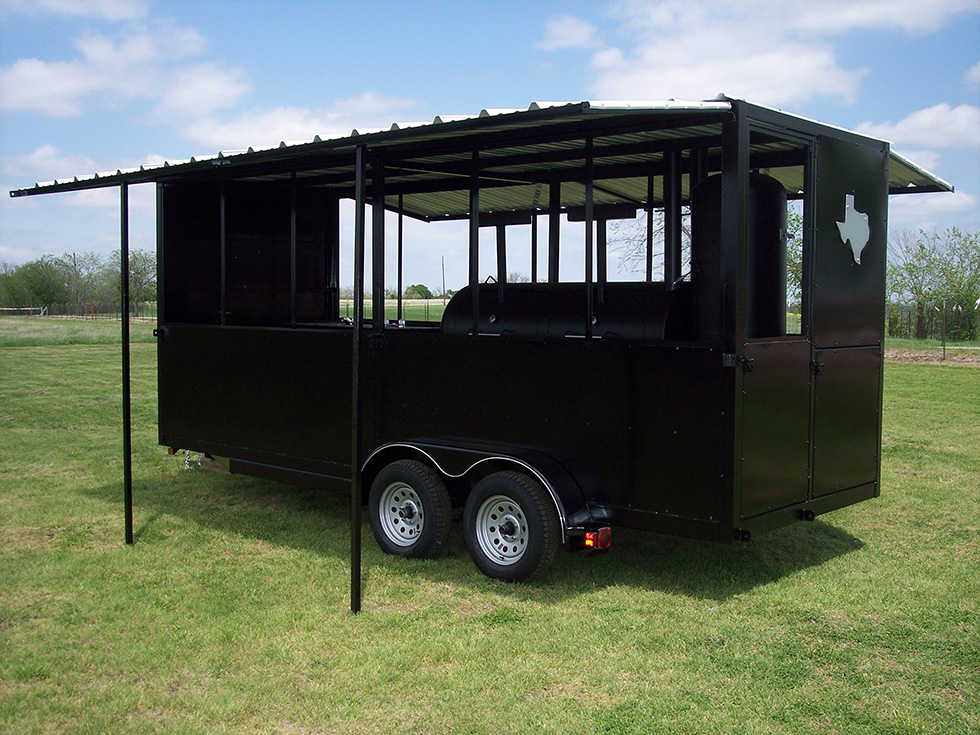

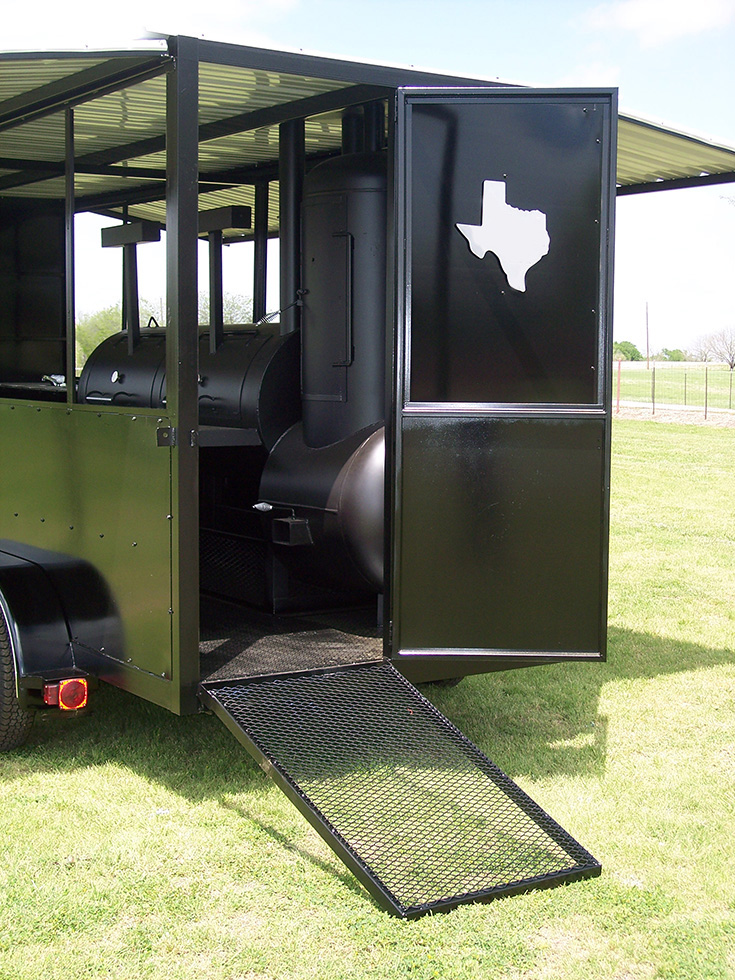

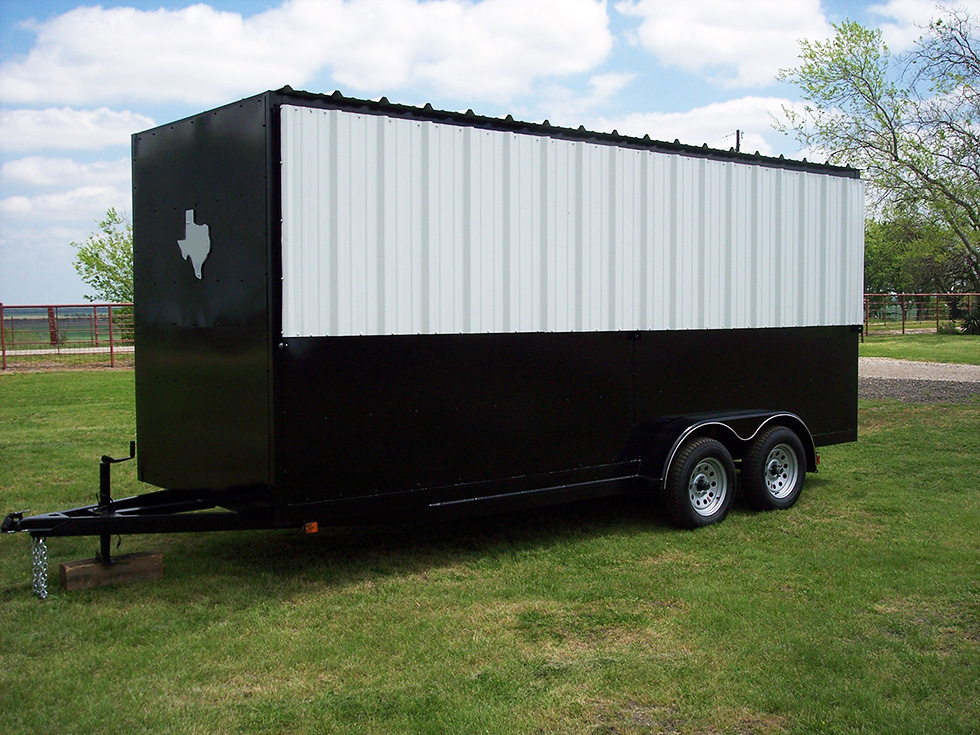

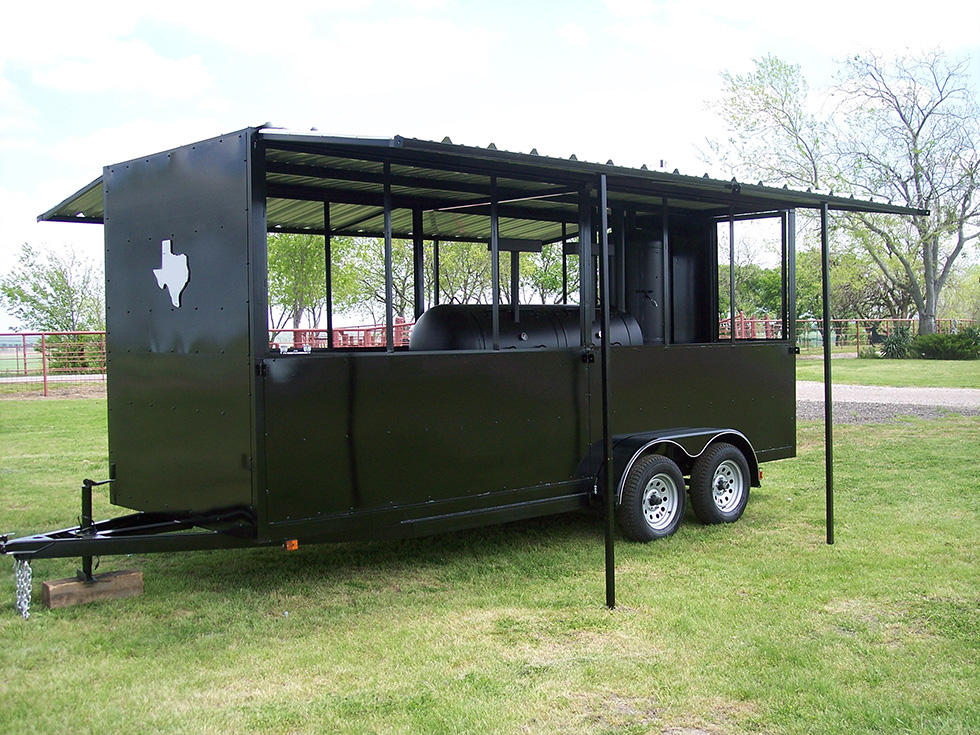

Brand new 76” wide by 18' long tandem axle trailer with diamond plate floor. The entire trailer is covered with a 7.5' tall white R-panel roof. Foldout awnings on both sides of the smoker. Solid steel front, steel half wall on sides, and all steel back with access door, ramp, and access door to smoker. The upper half of the trailer on the sides is framed out for installing bug screens if the customer chooses to do so.
There is ample room inside the trailer for adding in sinks, burners, and other accessories of your liking.
The Trailer itself is constructed with 4” C-channel, custom positioned 3500 axles, 2” hitch, safety chains, breakaway kit, lights, NEW TIRES, and your choice of either Silver or Chrome wheels. For Chrome wheels, lug nuts, and center caps, add $500. see pics for chrome vs. silver.
All doors and firebox door are lined with flat-strap for less heat escape. Spring handles on vents and doors to keep hands from getting burned etc. Temp gauges, and 10” shelf around the pit etc. 1200-degree high heat paint. Personally pre-seasoned with Pecan wood.
All in all this is a very efficient unit. The ENTIRE rig is constructed from ¼” steel. It will last a very long time and holds heat better than any I’ve seen. The reverse flow system, Vertical smoker, counter-weighted doors, and dual stacks at grate level, all make these pits one of a kind and a super flexible cooking unit. Premium Heavy-duty tandem trailer with diamond plate floor and wrapped tongue handle this pit nicely.
I can have your initials, ranch brand, or logo cut out with a computer driven plasma cutter and suspended on top of the pit for an added touch of personalization. Contact us for details.
