Total Cooking Surface:
73 sq. ft.
Pit (Reverse Flow):

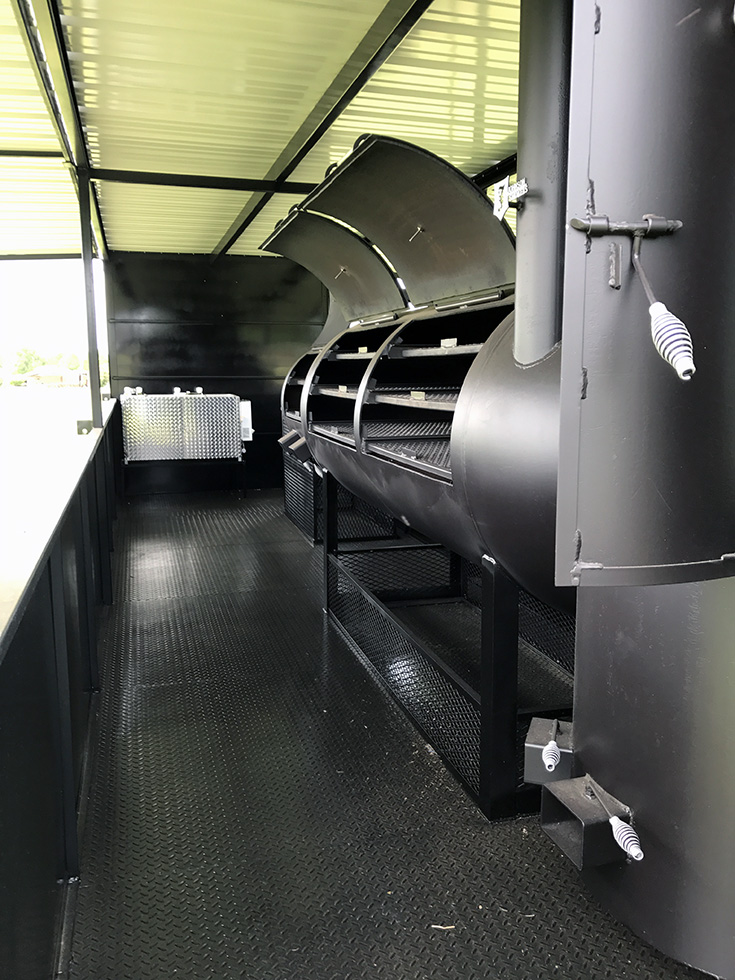

Total pit measures 15' long and 36” wide. It consists of an 8' long main chamber that’s 36" in diameter. Two cooking doors with counterweights make opening a breeze. Three slide out cooking racks per door measuring 36” by 36” and 36” by 33” and 36” by 24” giving you right at 47 square feet of cooking surface!!! The pit is designed with industry standard Reverse Flow. The baffles are made in 2 separate pieces for adjustability. No more hot spots… Contact me if you’d like a description of its characteristics. I have also taken this concept a step farther and made the reverse flow baffles removable. This makes cleaning a lot easier. There are 2 stacks with rain caps set to pull the heat out at “cooking grate level.” They are 6” in diameter and measure 5' long. Setting them at the same level as the cooking racks keeps the heat in the cooking chamber longer making the pit burn less wood and making the stacks 5' long allows for a more sustained draw of smoke from the cooking chamber.
Stainless Steel cooking racks quoted on request!!!

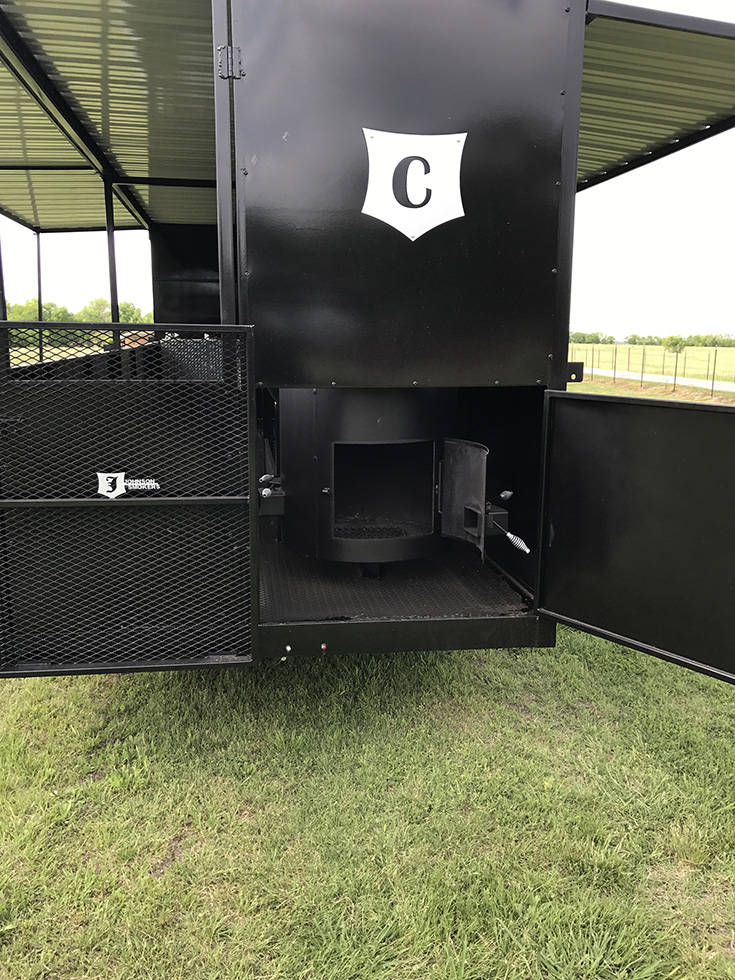

The pit has a 30” tall by 30” wide firebox with (3) 6” by 4” vents for ample airflow and cooking heat.
If you decide to use the entire pit surfaces to cook using the firebox you have a grand total of 73 sq. ft. of cooking surface!!!

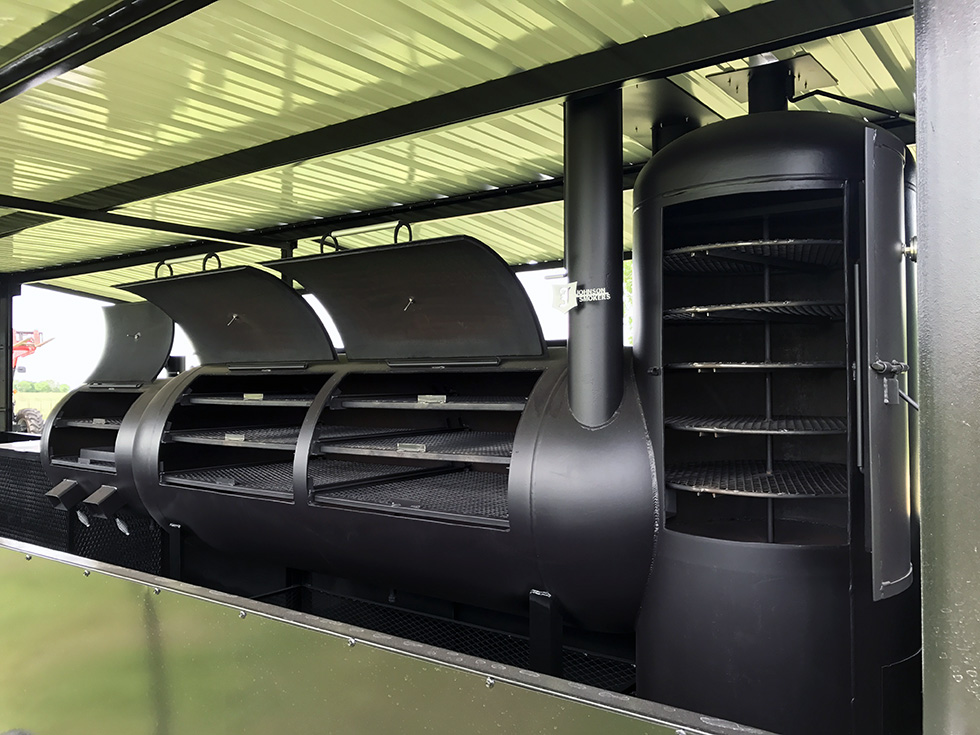

Sitting on top of the firebox is a 30” diameter by 4' tall smoker. It is connected to the main chamber by a 6” by 4” vent that can be opened for smoking or shut off completely turning the smoker into a warmer. Inside the smoker is 5 rotating cooking racks that have a combined cooking surface of about 16 square feet. The smoker has its own temp gauge, 4.5” stack and spring steel handles.
Welded on the front of the main cooking chamber is a 3' long by 30” diameter Charcoal Grill. It is connected to the main chamber via a 6” by 4” vent that can be opened or shut. The Charcoal grill contains 2 cooking racks, 28” by 27” and 24” by 27” for a total grilling surface of around 10 square feet. The grill has an adjustable charcoal tray measuring 2ft long by 2ft wide and its own 6” by 4” vent to feed the charcoal fire. Finally it has twin 3.5” diameter stacks with ran caps. See photos.

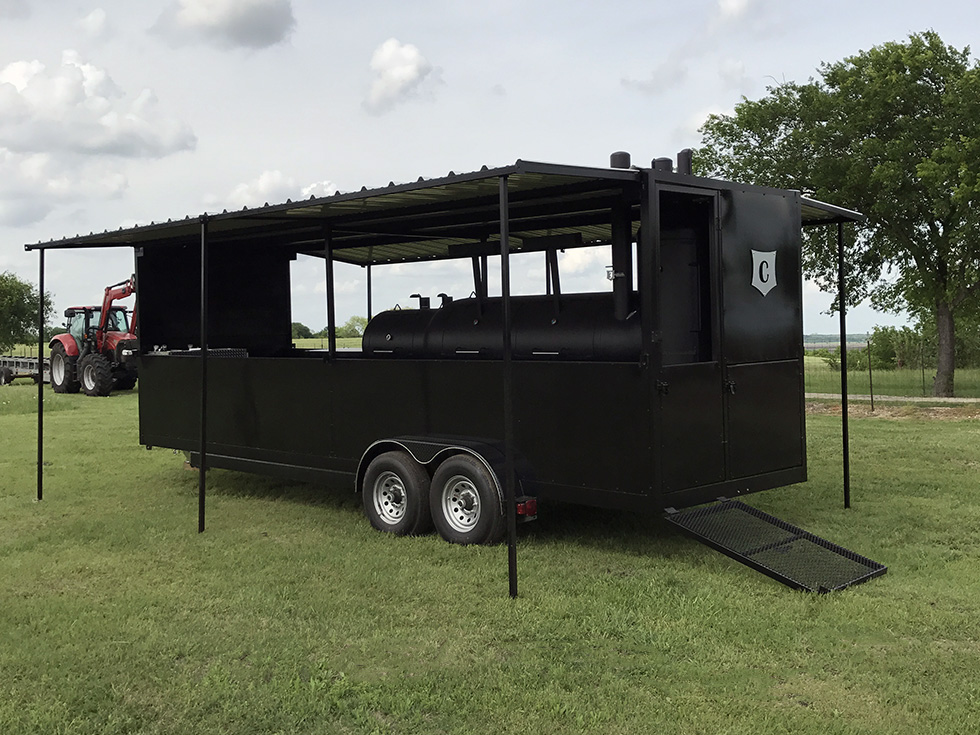

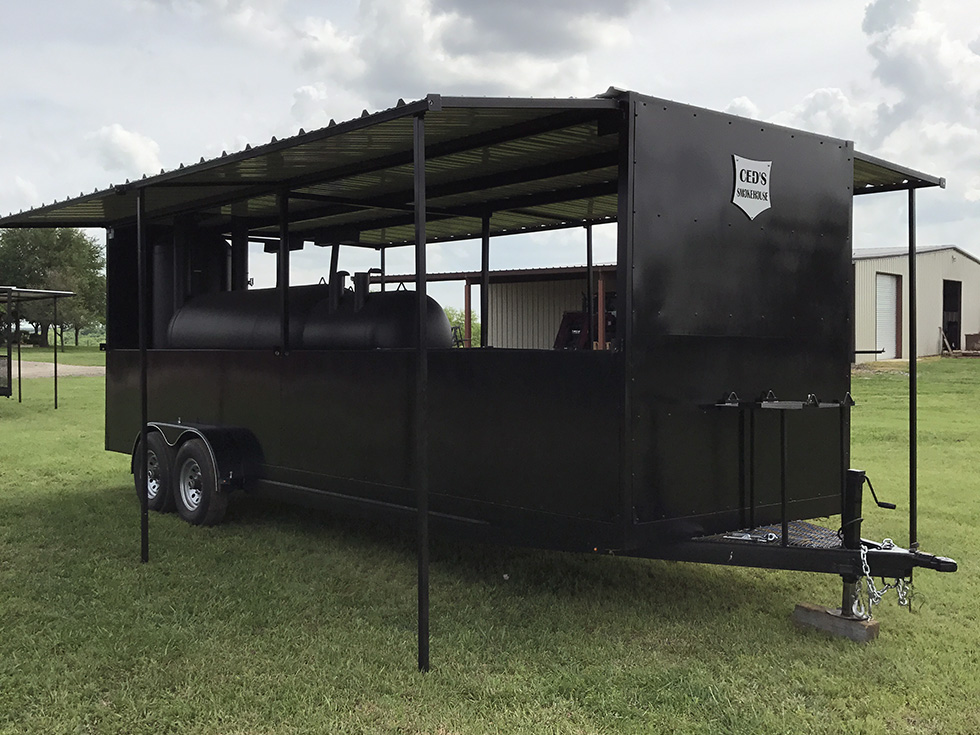

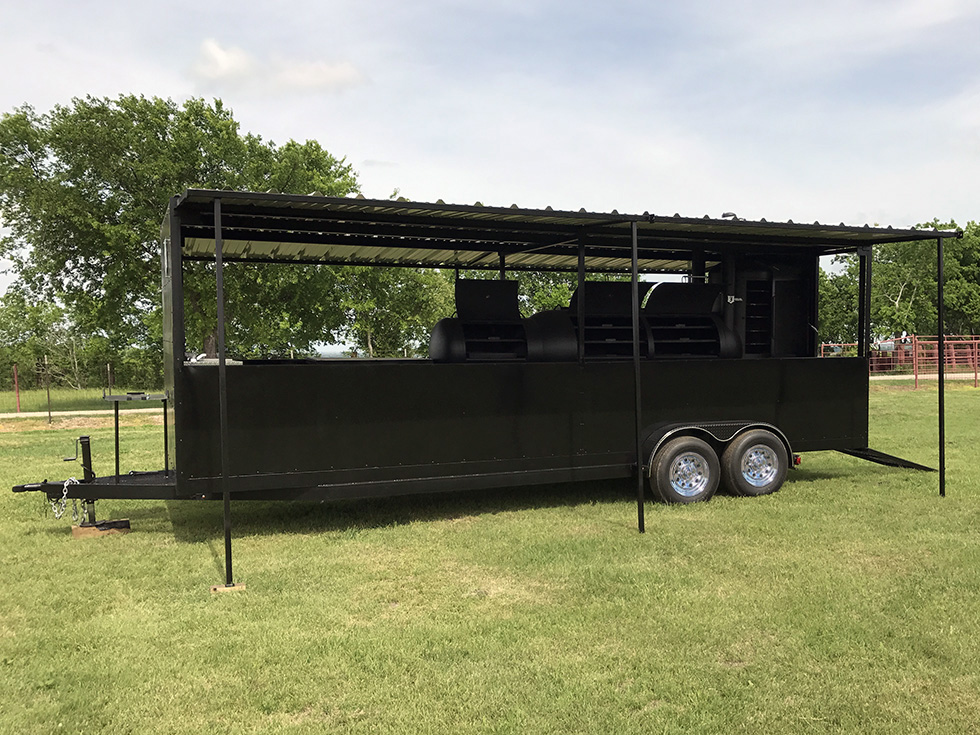

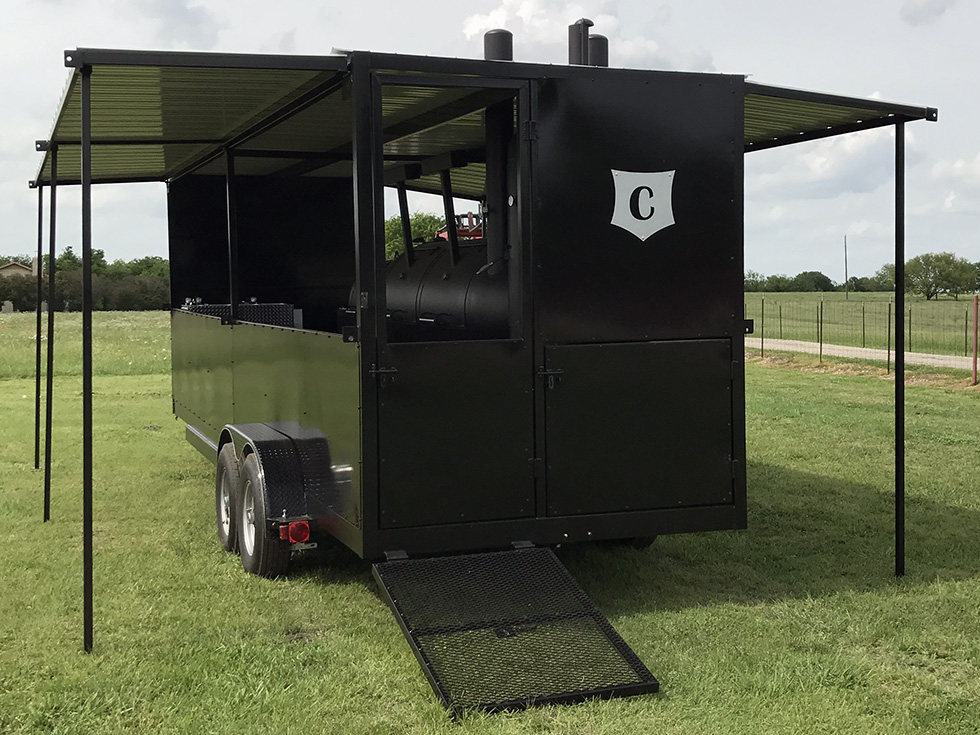

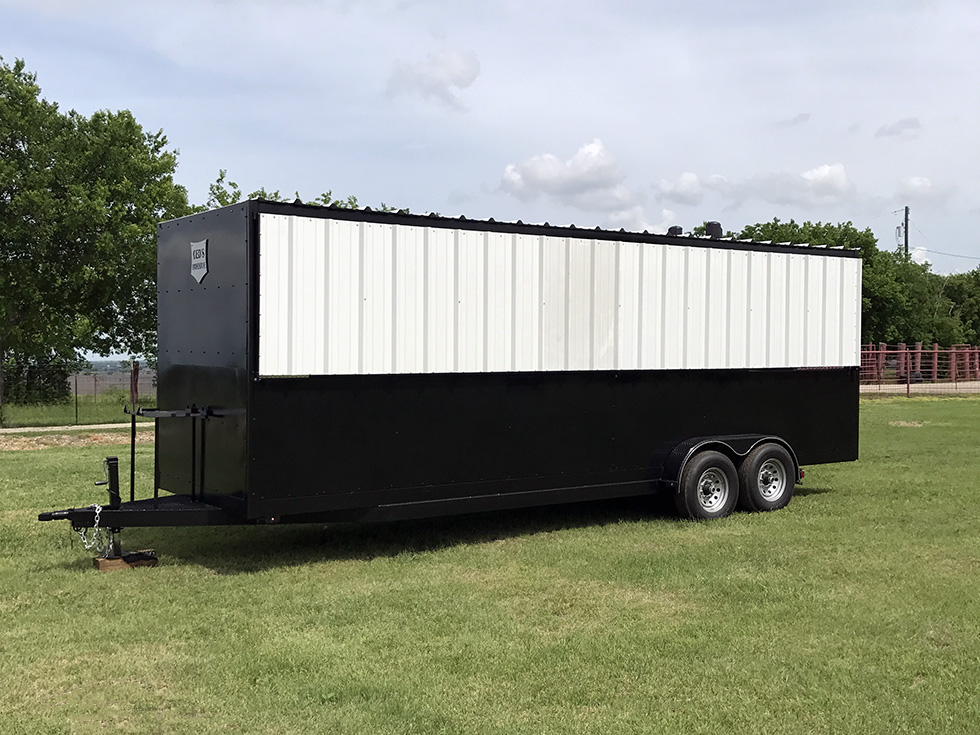

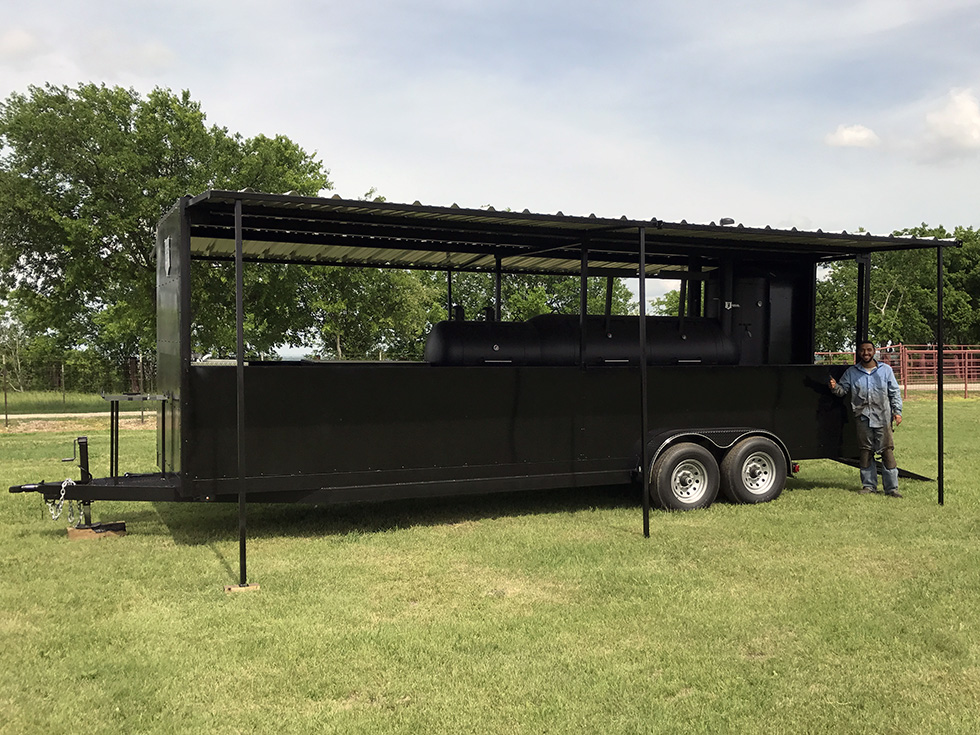

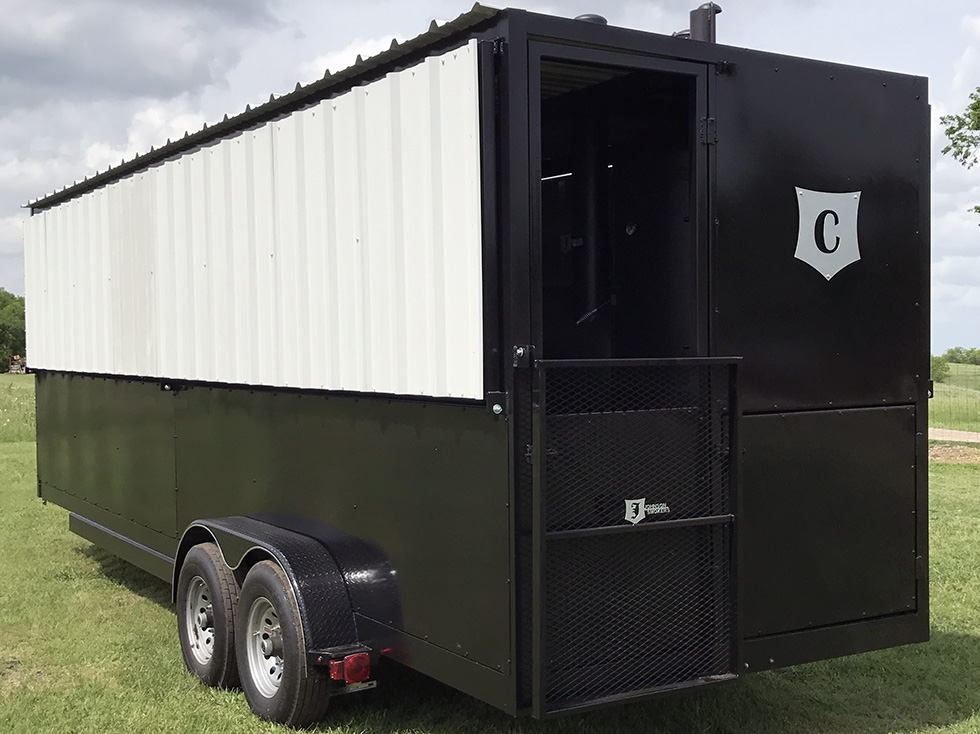

Brand new 82” wide by 24' long tandem axle trailer with diamond plate floor. The entire trailer is covered with a 7.5' tall white R-panel roof. Foldout awnings on both sides of the smoker. Solid steel front, steel half wall on sides, and all steel back with access door, ramp, and access door to smoker. The upper half of the trailer on the sides can be framed out for installing bug screens if the customer chooses to do so.

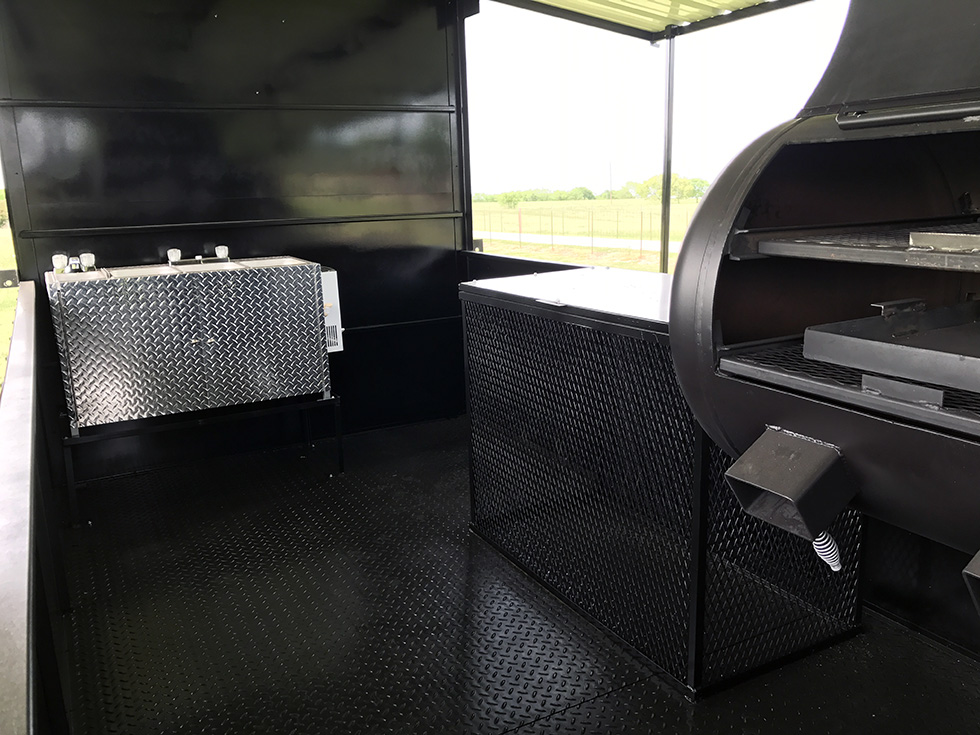

There is ample room inside the trailer for adding in sinks, burners, and other accessories of your liking. Notice the sample photos show a wood rack and sink for example, these items as well as anything else can be added upon request. Please email or call to discuss the best way to setup your next bbq trailer.
The Trailer itself is constructed with 5” C-channel, custom positioned 7000 axles, 2 5/16” hitch, safety chains, lights, NEW TIRES and your choice of either Silver or Chrome wheels. For Chrome wheels, lug nuts, and center caps, add $575. see pics for chrome vs. silver.
All doors and firebox door are lined with flat-strap for less heat escape. Spring handles on vents and doors to keep hands from getting burned etc. Temp gauges, and 10” shelf around the pit etc. 1200-degree high heat paint. Personally pre-seasoned with Pecan wood.
All in all this is a very efficient unit. The ENTIRE rig is constructed from ¼” steel. It will last a very long time and holds heat better than any I’ve seen. The reverse flow system, Vertical smoker, counterweighted doors, and dual stacks at grate level, all make these pits one of a kind and a super flexible cooking unit. Premium Heavy-duty tandem trailer with diamond plate floor and wrapped tongue handle this pit nicely.
I can have your initials, ranch brand, or logo cut out with a computer driven plasma cutter and suspended on top of the pit for an added touch of personalization. Contact us for details.
Important Notice & Options:
This trailer can be outfitted with any of our smokers, please contact us to clarify cost on this trailer if you would like a different smoker installed. Also this unit can be finished out with wood racks, sinks, fryers, electrical, and other equipment etc. Just let us know and we’ll construct your perfect layout. Photos show simple wood rack with sink for viewing purposes, they are not included in the base price, please contact for more details.
